name

Parameters

name

Parameters

Laser power

1000W 1500W 2000W

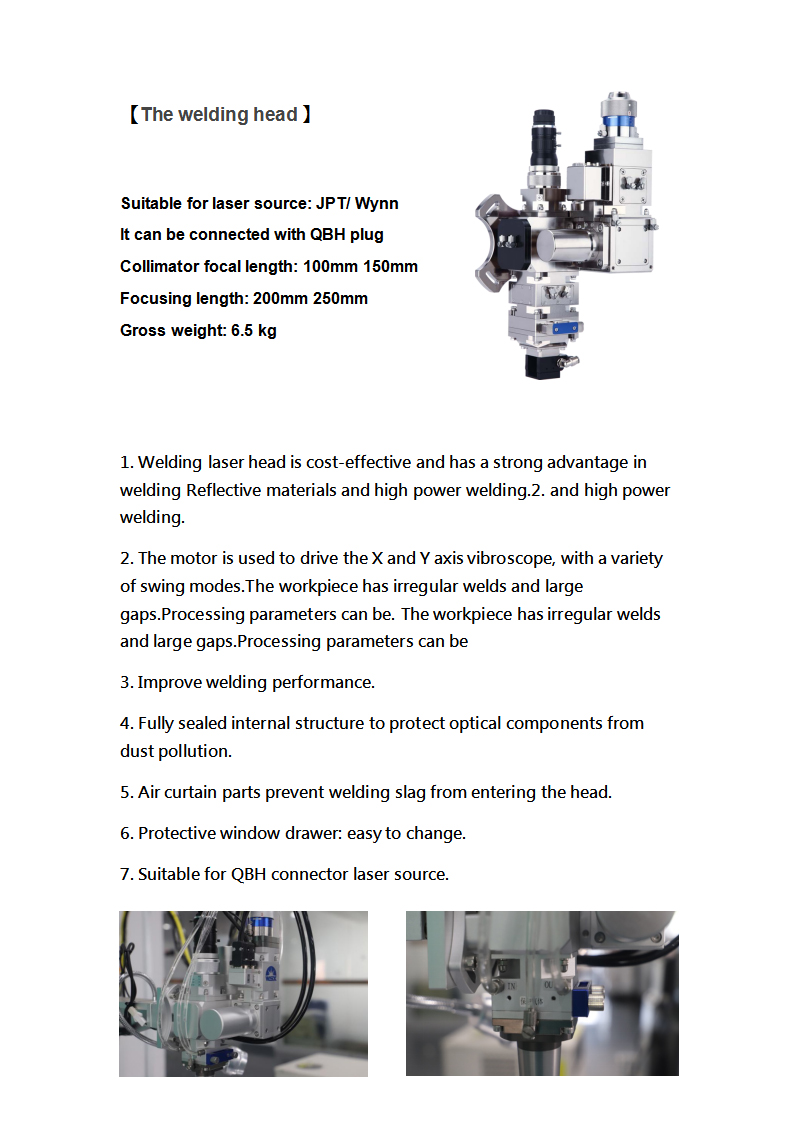

The welding head

Double swing welding joint

Welding joint brand

Wan shun xing

The pulse width

100ns

Adjustable power range

1 - 100%

Adjustable frequency

1 -10000 Hz

The adjustable ratio

10 - 100%

Welding speed

1 - 3000mm/min

The beam diameter

0.6 mm

Turning diameter

0.6 -to 5mm

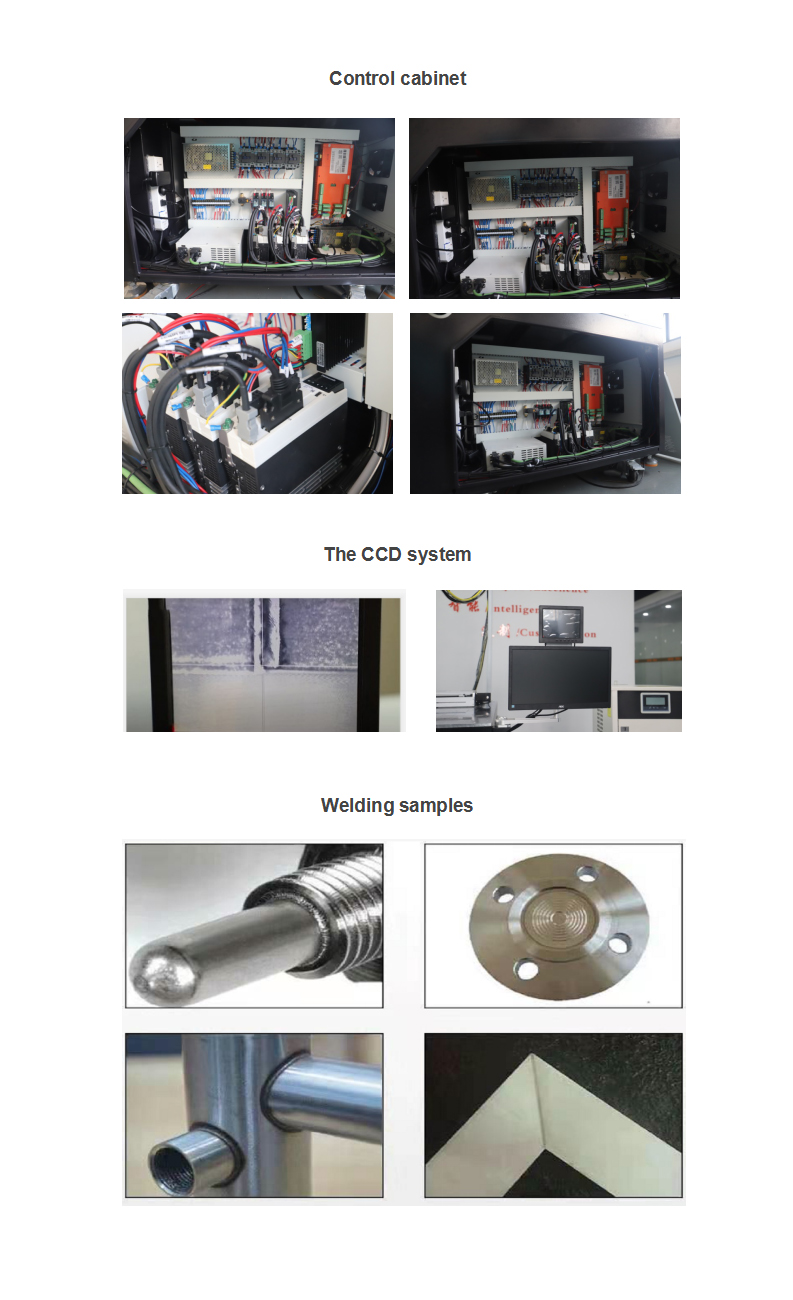

The CCD system

high-resolution

Optical fiber line length

15m

Servo drive

Panasonic

XYZ axis motor power

X 400W  Y 400W  Z 300W

XYZ axis travel (customizable)

X 500mm, Y  300mm Z   500mm

The cooling system

The circulating water is cooled

Program (Programmable)

NC06-computer

Working temperature

55°F(13°C)-82°F(28°C)

noise

≤60db

Rotating device

adjustable0- 90°c

Rotate the diameter

80mm Customizable

The wire feeding machine

0.8mm 1.0mm 1.2mm

The machine size

1250x1040x1890mm

Fiber laser

JPT YongLi
