ZX1500HWM Handheld laser welding machine

1.The heat input can be reduced to the minimum required amount, the metallographic change range of the heat-affected zone is small, and the deformation caused by heat conduction is also the lowest.

2.There is no need to use electrodes, and there is no concern about electrode contamination or damage. And because it is not a contact welding process, the wear and deformation of the machine tool can be minimized.

3.The laser beam can be focused on a small area and can weld small and closely spaced parts.

4.A wide range of materials that can be welded, and can also join various different materials.

5.Easy to weld at high speed automatically, and can also be controlled by digital or computer.

6.When welding thin materials or small diameter wires, it will not be as easy to be troublesome as arc welding.

7.Unaffected by magnetic field (arc welding and electron beam welding can be affected easily), can accurately align the weldment.

8.Two metals with different physical properties (such as different resistance) can be welded

Share to:
Product Description



【PERFORMANCE PARAMETER】

Parameters

Model & name

SF1500HWM Swing handheld fiber laser welding machine

Welding head

Standard

Laser source

RFL-C1500

Laser wavelength

1080nm

Fiber length

10m

Fiber core diameter

50μm

Speed range

0—120mm/s

Working temperature range

15—35℃

Recommended welding thickness

0.5—5mm

Chiller

Water chiller

Dimensions

954X715X1080mm

Weight

220KG

Power

Standard 380V 50/60HZ

Consumable parts

Protective lens 1 weekwelding nozzle over a month

Total power

9KW

Material of feeding wire

Standard 1mm gas protected welding wire1mm stainless steel wire,other welding wires are as options

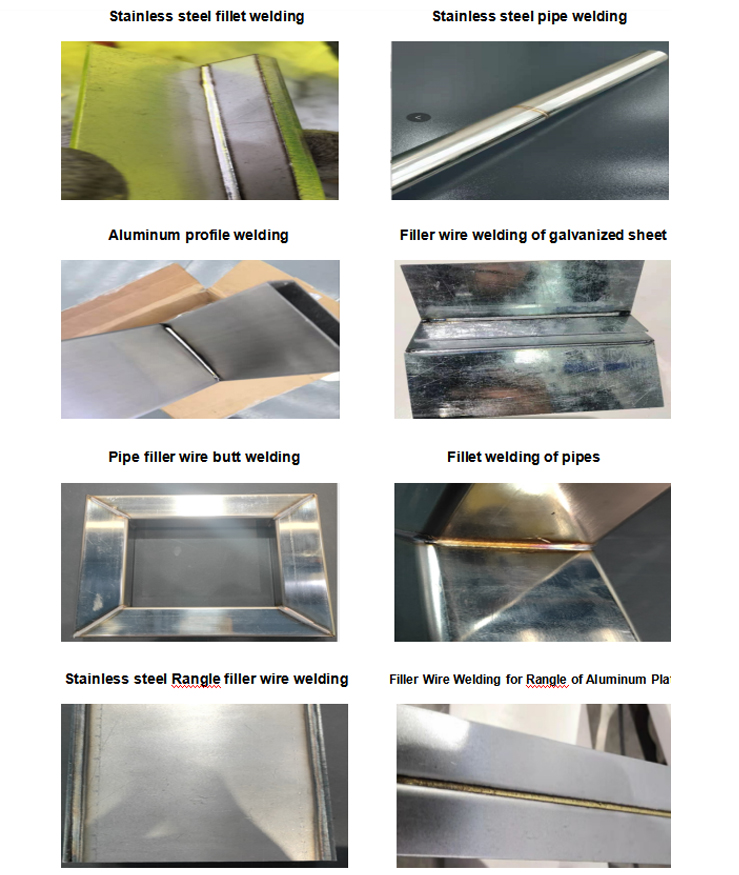

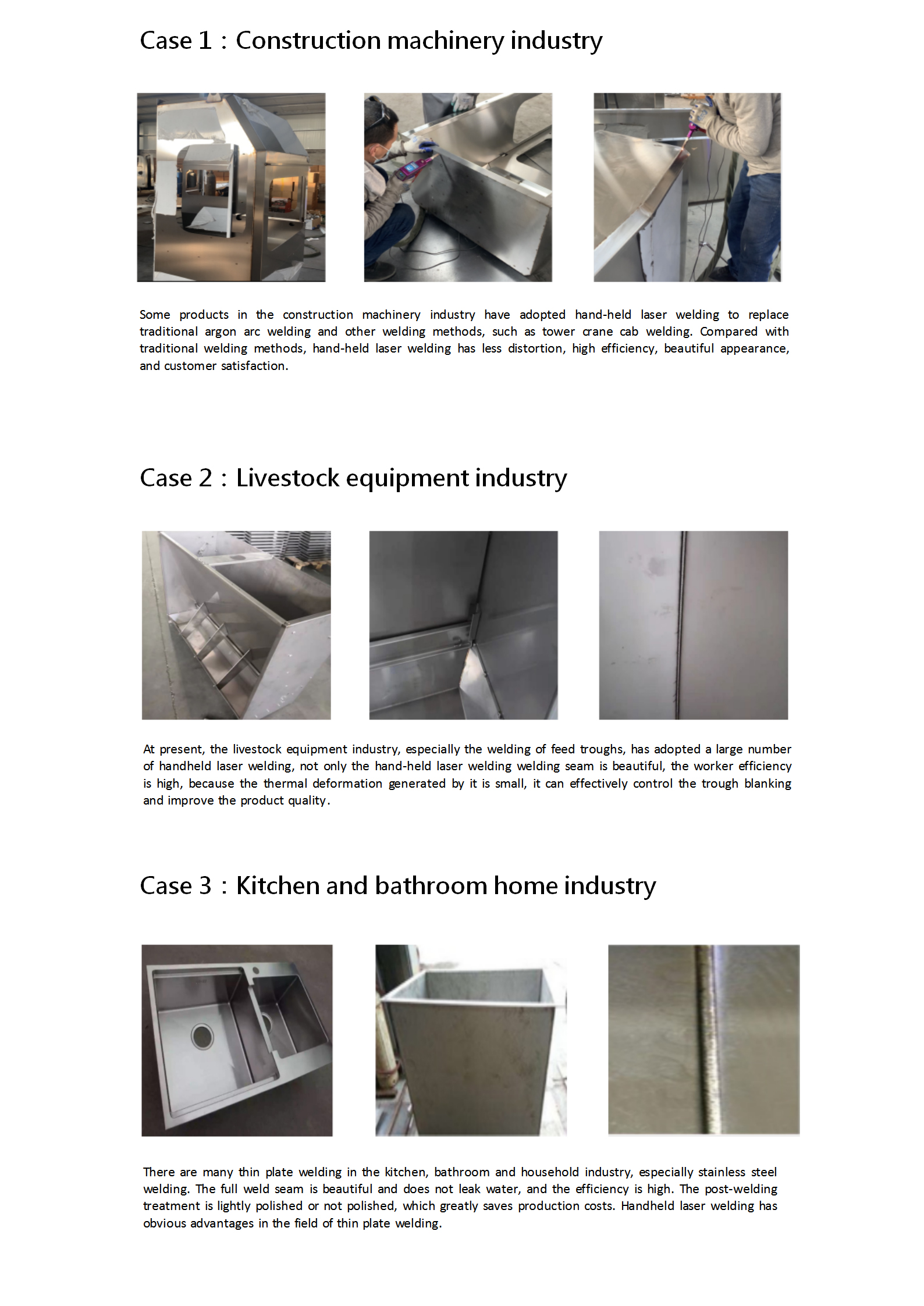

【APPLICATION CASES】
