● Technical parameters

● Main function

1.The main function:

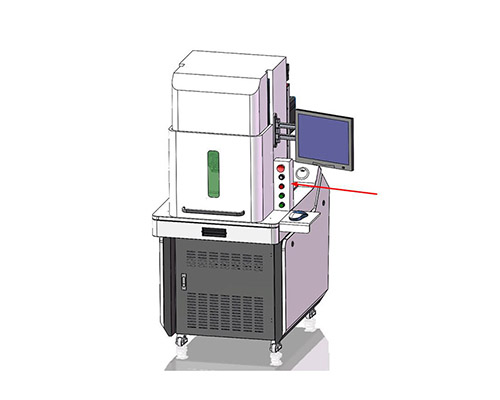

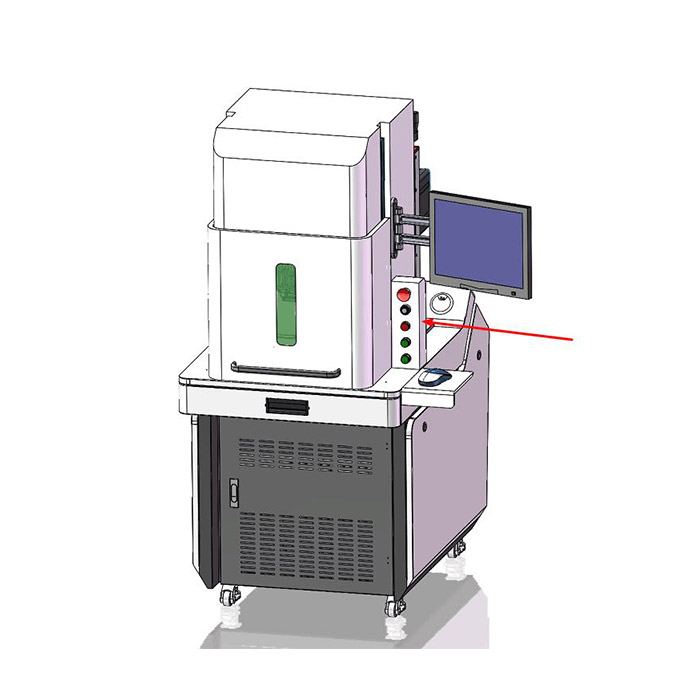

Automatic camera positioning
Equipped with camera positioning system, camera positioning system includes super clear 5 megapixel industrial camera, specific driver board card.
2.Special drawing software
Equipped with a high-end optical fiber laser marking machine can achieve automatic positioning
3.No need fixture
Just need to set up the material template in front can not be a specific alignment workpiece can be automatically find the direction of the automatic standard
4.Multiple workpiece marking
Supports the marking of 1000 workpieces within the field of view without positioning

● Product features

1. Golden Orange large coaxial automatic camera positioning system, using CCD camera system, high positioning accuracy, can support any shape of the workpiece positioning, edge finding calculation, commonly used and bar code identification.
2. Within the field of vision, it can realize the positioning and marking of different positions with the maximum of 1000 jobs, which is efficient and fast.
3. Can support various types of lasers, meet the processing requirements of various shapes, through the 45 °mirror is the camera light path and laser light path unity, achieve coaxial.
4. The optical circuit part is fully enclosed dustproof design, which can effectively protect the core optical devices from pollution, make the machine work stably and have a longer life.
5. The bed is fully enclosed in design and equipped with an automatic smoke exhaust system to protect the human body from laser radiation and dust processing, thus truly achieving safety and environmental protection.
6. EZCAD software has powerful functions, supporting Windows7/10 32-bit and 64-bit operating platforms, basically supporting all national languages, supporting multi-format file import, simple and intuitive operation, higher processing efficiency.
7. The galvanometer has high positioning accuracy, so it needs to be equipped with a correction platform for high-precision correction.
8. Support extension axis, can realize the array machining.

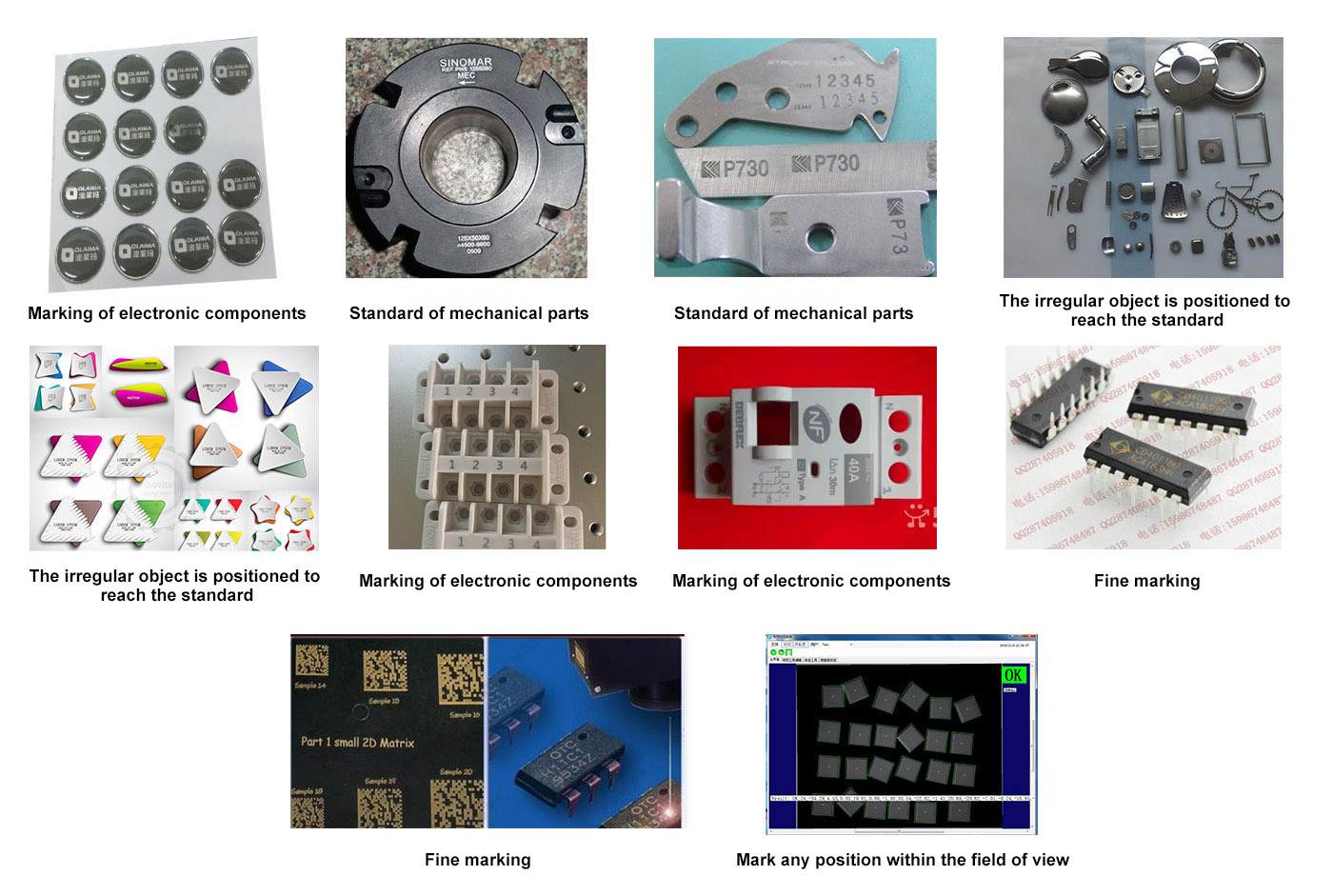

● Range of application

Marked material:
1. Metal: Gold, silver, copper, alloy, aluminum, steel etc.
2. plastic : plastic shell、 ABS、PC、 engineering plastic 、rigid plastic, etc.
3. Wooden products： Wooden tube、 bamboo tube、wine bottle box 、wooden tableware and so on.

Application advantages：
Suitable for heavy workload, difficult workpiece positioning, need to simplify the process, workpiece diversification, etc.

● Industry application
