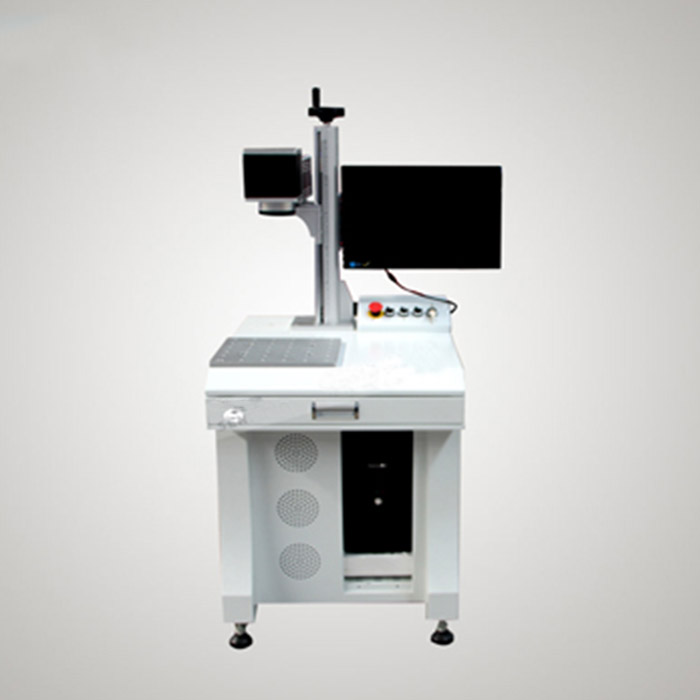

ZX200F Metal laser marking machine

Laser equipment: domestic laser equipment or (German IPG or British SPI)
Laser power :10 W/20W
Laser wavelength: nm 1060
Beam quality: m2Laser repetition rate :≤ KHz 100
Standard marking range :110×110 mm
Optional marking range :50×50;100×100;150×150(mm)
Sculpture depth: mm ≤1.2
Line speed: mm/s ≤12000
Minimum line width: mm 0.01
Minimal character: mm 0.05
Repeat accuracy :±0.001 mm
Power consumption :≤500 W
Electricity requirements :200 V/50Hz/10A
Cooling mode: air cooling

Share to:
Product Description

1.High speed,
2.Small volume, light weight
3.No consumables, low power consumption, less than 500 W power consumption
4.Complete air cooling, no water cooler, energy consumption reduction;
5.No affected by adverse environment and temperature changes, in the state of power failure can use batteries, car cigarette lighter to work;
6.Depreciation cost of products can be greatly reduced, can fully meet the customer mass, stable production

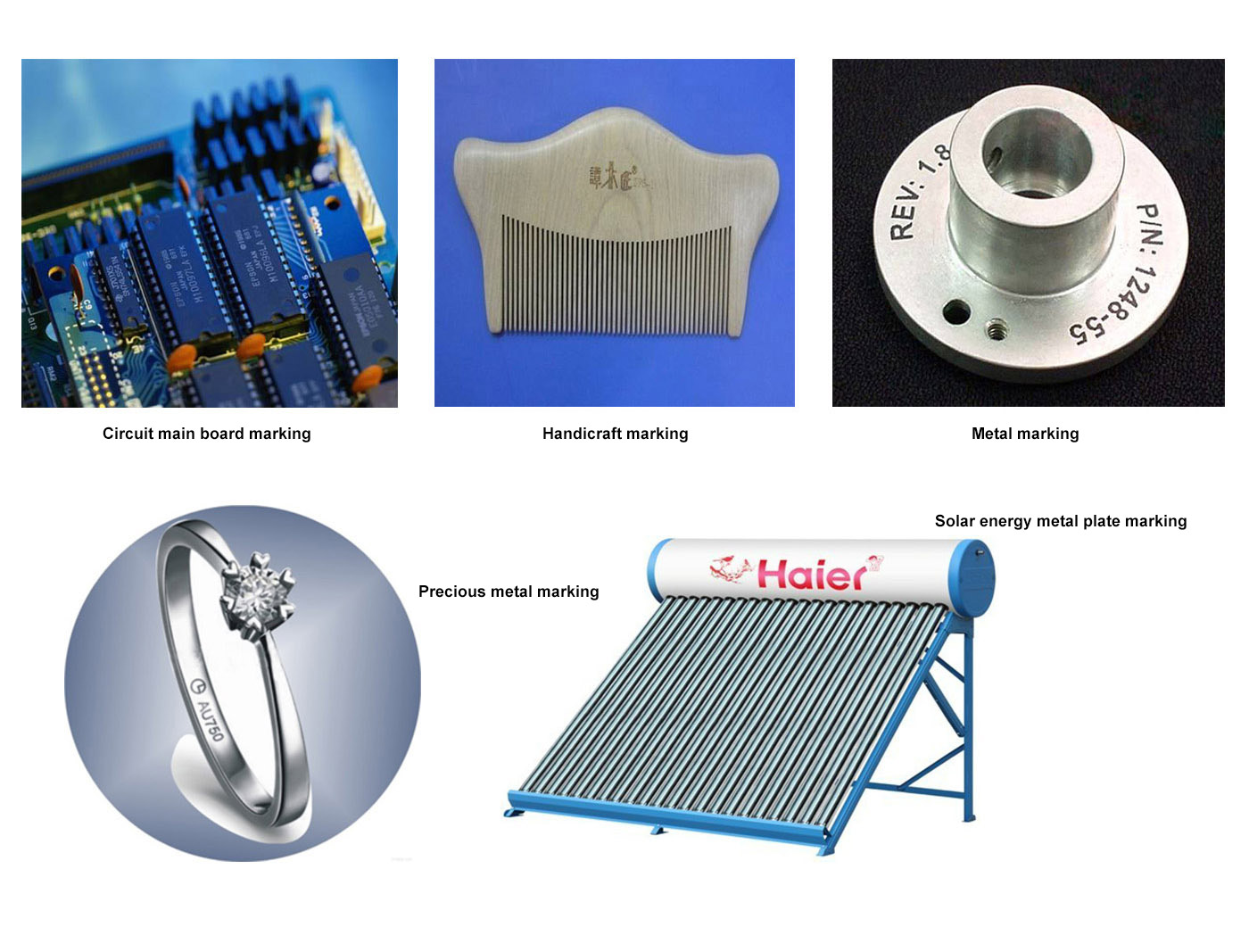

Industry Application: Gold and Silver Jewelry, Sanitary Ware, Food Packaging, Tobacco Drinks, Drug Packaging, Medical Devices, Glasses, Watch, Auto Parts, Electronic Hardware

Applicable materials: gold and silver, stainless steel, ceramics, plastics, glass, stone, leather, cloth, bamboo, etc

Typical cases: auto parts marking, tobacco marking, beer marking, ring marking, electronic marking
