name |
Parameters |
name |
Parameters |
|

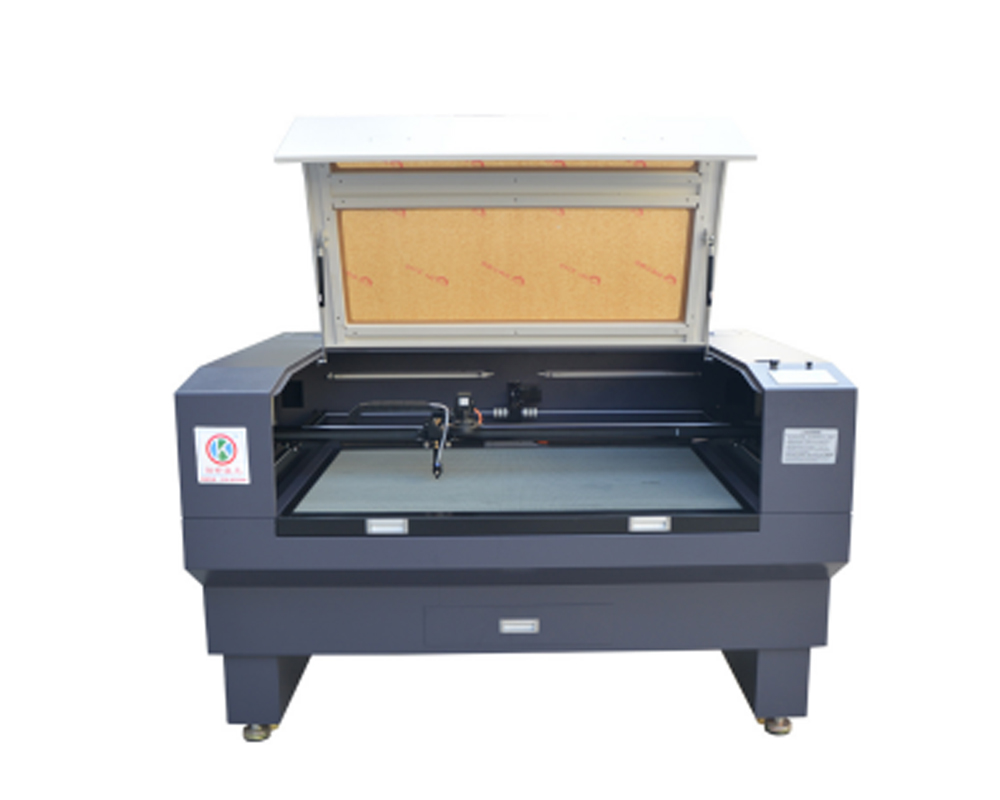

Equipment model |
JM1390 |
Working area |
1300mm*900mm |
|
Maximum acceleration |
0.2G |
Fast moving speed |
42m/min |
|
Positioning accuracy |
±0.1mm |
Repeat ability |
±0.05mm |
|
Work table |
Blade/Honey comb |
Stepper motor |
Lead shine |
|
Guide rail |
Standard |
Organ cover |
Standard |
|
Machined batch |
Standard |
Operating system |
Ruida |
|
Compatible Software |
Corel Draw Auto CAD Photo shop |
Position system |
Red dot |
|
Interface |
USB |
Minimum shaping character |
letter1mm*1mm |
|
Support graphic format |
DST, PLT, BMP, DXF and AL |
Operating humidity |
5-95% |
|
Operating temperature |
0-45℃ |
Laser |
100W |
|
Working voltage |
AC110- 220V±10%, 50- 60Hzordepend on customer |
Operation |
Vide to tell customer how to operate the machine |
|

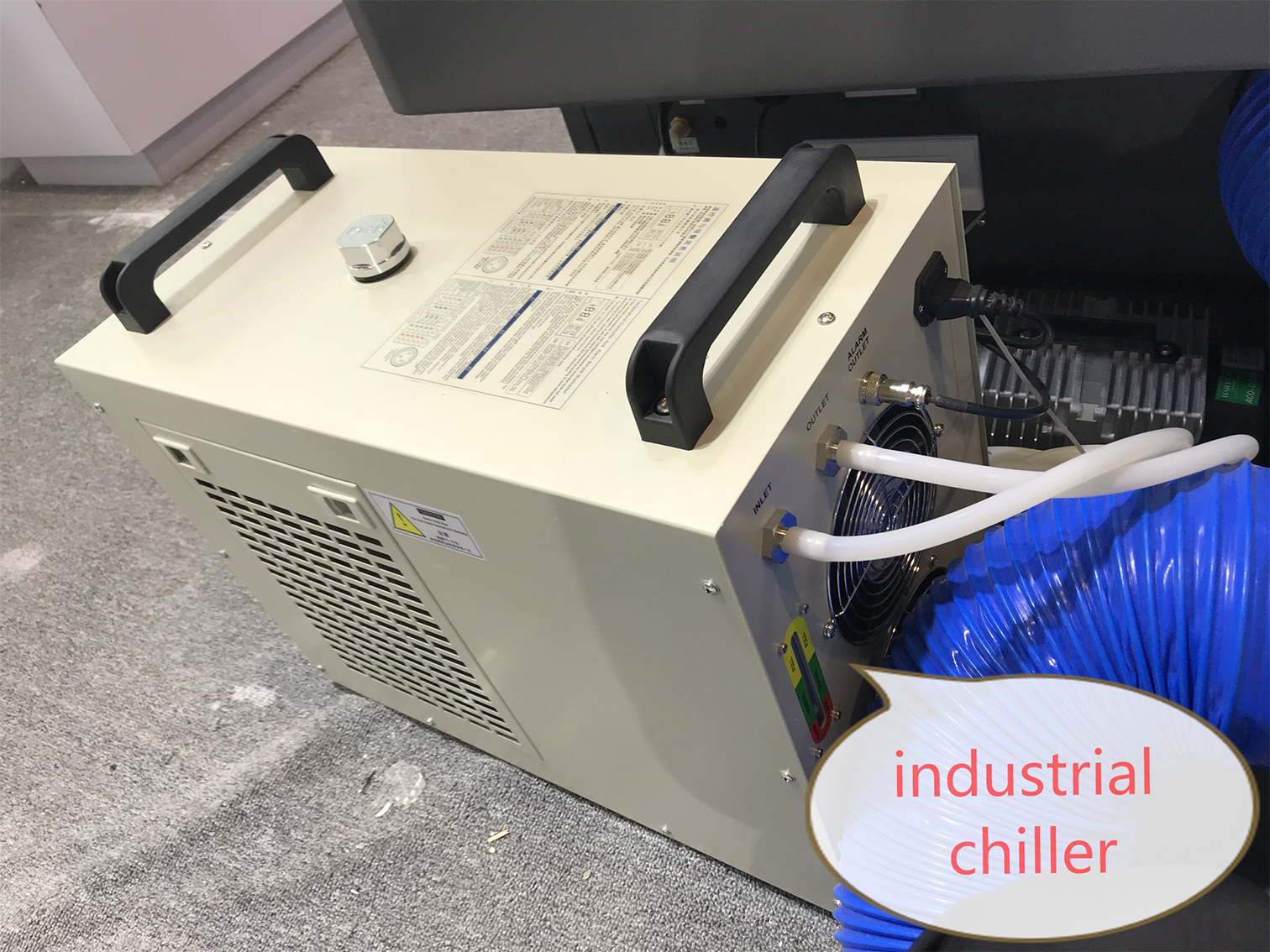

Water cooler |
Tongfei |
Applicable materials:
genuine leather, artificial leather, soft leather, decorative leather, packaging leather, etc, all kinds of leather materials, pure cotton, real silk, chemical fiber, denim, non-woven,acrylic, double color board, acrylic, MDF, plywood, wood, etc
